Customisable Bosch Smart System with Performance CX e-drive, Intuvia display and 625 Wh battery

Offroad-ready mountain bike geometry with 29" wheels (size XS: 27,5") and Shimano Deore 10-speed shifting

Comfortable cockpit and C.I.S. stem with integrated cable routing,

Bosch CX e-drive & 625 Wh battery

29" wheels (size XS: 27,5") & Shimano Deore 10-speed

Comfortable cockpit with C.I.S. stem

Brake: 180
Pedal: MTB, with reflector
Frame size
- XS,S,M,L,XL
- 36,40,44,48,52
Drive train: Chain
Max total weight: 150 kg
Frame: 7005 hydroformed aluminium, 3D forging, 148x12 mm thru axle, post mount 180 mm
Fork: SR Suntour XCR 34 LO Coil, 15x110 mm
Handlebar: Aluminium, 760 mm, flatbar, backsweep: 9°, 35,0 mm
Saddle: Selle Royal HRN 4007
Seat post: Aluminium, 31.6 mm
Stem: FOCUS C.I.S. integrated, 60 mm, 30°, 35 mm, aluminium
Brakes: Shimano MT200, 2-piston, hydraulic disc brake
Crank set: FSA CK-320, aluminium
Sprocket: Shimano Deore M4100, 10-speed
Transmission: front: 36, rear: 11-42
Wheel rims: RODI TRYP25, 25-622
Brake lever: Shimano MT200
Battery: Bosch Powertube, removeable, lockable
Display: Bosch LED Remote + Intuvia 100
Motor: Bosch Performance CX Gen4, 85 Nm, 250 W
Color
- Diamond Black
- Bluegreen glossy
Travel: 100 mm
Hub
- Shimano Alivio MT400, 15x110 mm
- Shimano Alivio MT400, 12x148 mm
Grip: Herrmans Click
Rear derailleur: Shimano Deore M4120, 10-speed
Tire: Schwalbe Smart Sam, 57-584,Schwalbe Smart Sam 2.25, 57-622
Bottom bracket: Integrated in Drive Unit
Shift/brake lever
- Shimano MT200
- Shimano Deore M4100, 10-speed
Spoke: Zink, black
Chain: KMC X10, 10-speed

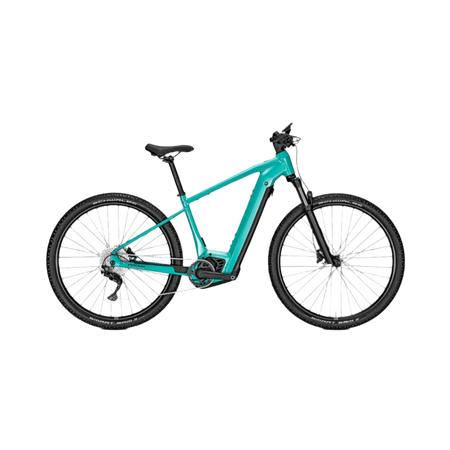

F24 Focus Jarifa2 6.7
