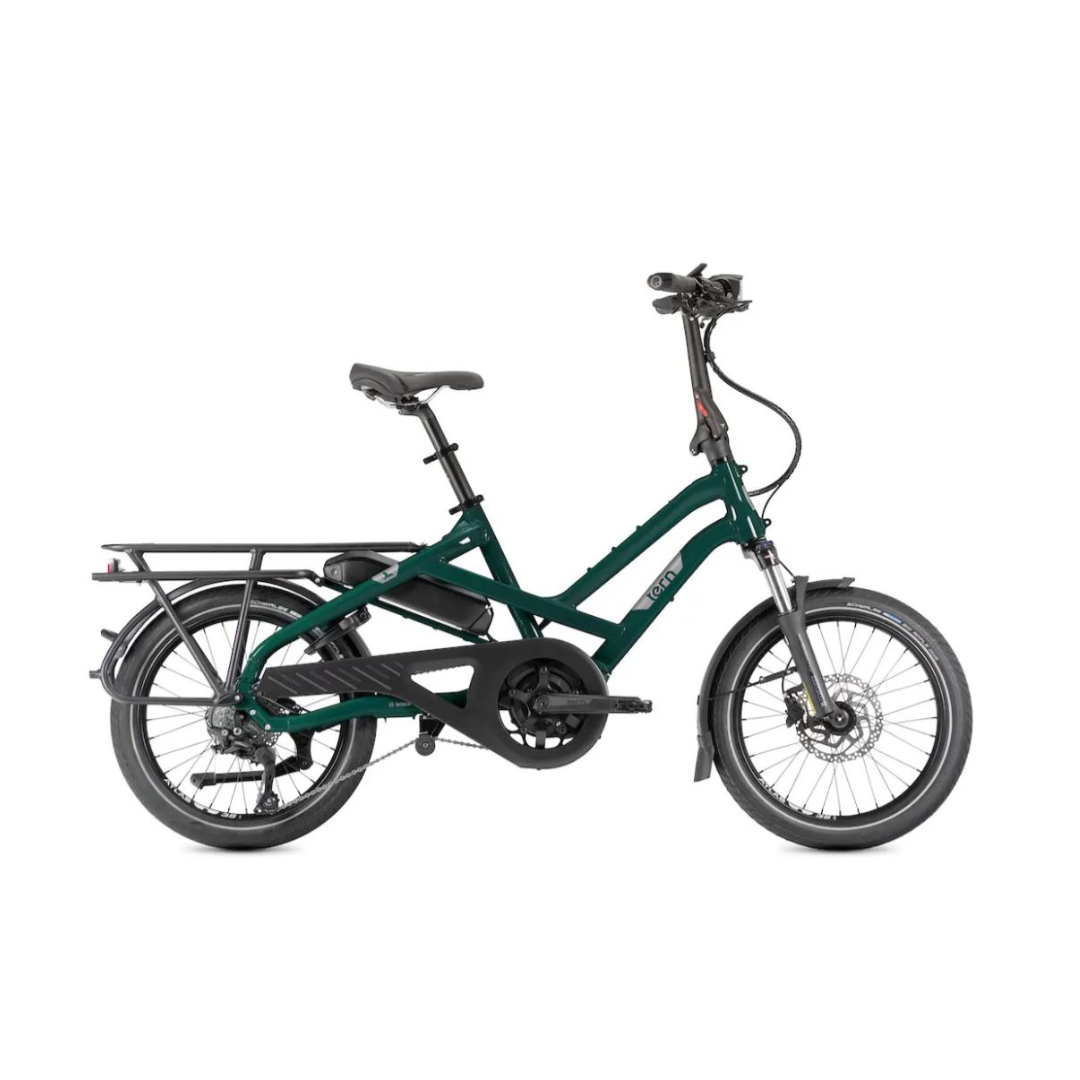

Tern HSD P10
Regular price
$6,995.00
What makes it a P10?
- Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
- Detachable and easy-to-understand Intuvia 100 display
- 1x10-speed Shimano Deore groupset with trigger shifter
HSD Highlights
- Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
- Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
- Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
- Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
- Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight
Specifications
GENERAL INFO
SPEEDS: 1 x 10
WEIGHT: 27.6 kg (60.8 lb)
GEAR INCHES: 30 - 97" (2.36 - 7.72 m)
FOLDING SIZE: 165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in)
FOLDING TIME: 5 seconds
FRAME SIZES: One size
DISTANCE SEATPOST TO HANDLEBAR: 54.5 - 62.5 cm (21.5 - 24.6 in)
DISTANCE SADDLE TO PEDAL: 70 - 102.5 cm (27.6 - 40.4 in)
SUGGESTED RIDER HEIGHT: 150 - 195 cm (59.1 - 76.8 in)
MAX GROSS VEHICLE WEIGHT: 180 kg (396.8 lb)
MAX RIDER WEIGHT: 120 kg (264.6 lb)
FRAME
FRAME: Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
FORK: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
COCKPIT
HANDLEPOST: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
STEM: Tern Andros, adjustable, forged construction, patented technology
HEADSET: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
HANDLEBAR: Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE: Ergon
SADDLE: Tern Upright by Velo
SEATPOST: Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP: Tern Collar
BRAKES
FRONT BRAKE: Tektro, hydraulic disc, 180 mm rotor
REAR BRAKE: Tektro, hydraulic disc, 160 mm rotor
BRAKE LEVERS: Tektro, hydraulic disc
BRAKE CABLE & HOUSING: Tektro, hydraulic disc
WHEELS
FRONT WHEEL: Tern Atlas H, cargo wheel
REAR WHEEL: Tern Atlas H, cargo wheel
FRONT HUB: Novatec, Thru-axle, sealed bearings
REAR HUB: Novatec, sealed cartridge bearing, disc
SPOKES AND NIPPLES: Stainless steel
RIMS: Tern Atlas H, wide 35 mm
TIRES: Schwalbe Big Apple, 55-406, puncture protection, Reflex
TRANSMISSION
SHIFTER(S): Shimano Deore, 1 x 10 spd, trigger
REAR DERAILLEUR: Shimano Deore Shadow+
CRANKSET: Tern HSD custom
CASSETTE/FREEWHEEL: Shimano 11-36T, 10 spd
BOTTOM BRACKET: Motor integrated
CHAIN: KMC 10 spd, for eBike, EPT corrosion resistant coating
PEDALS: Urban with non-slip surface
SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules
E-SYSTEM
MOTOR: Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY: Bosch PowerPack 545
DISPLAY: Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
LOCK & ALARM: Optional
RANGE: 545 Wh: 51-121 km (32-76 mi)
CHARGER: 220V, 4A (EU); 100-240V, 4A (US)
BELLS & WHISTLES
BELL: Pitch Plus, brass
CHAINGUARD: Tern Custom, full chain cover
KICKSTAND: Ursus, rear mount
LUGGAGE SOCKET: Combo Mount
FRONT LIGHT: Tern Valo Direct, 190 lumens
REAR LIGHT: Herrmans H-Trace, for eBike
FENDERS: SKS, stainless hardware
RACK(S): Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity
FRAME LOCK: ABUS, keyed-alike with Bosch battery
