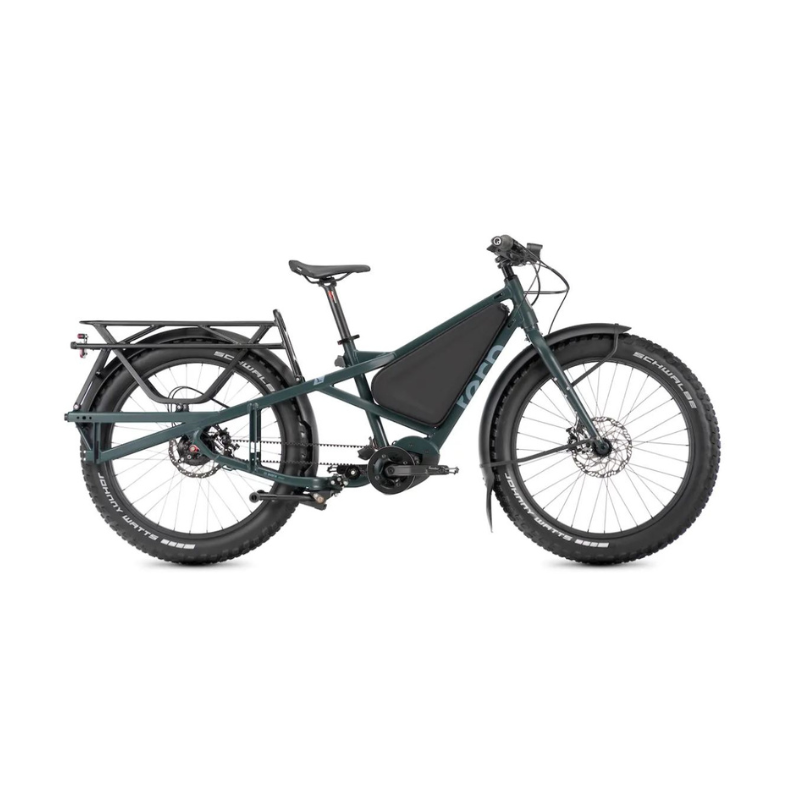

Tern Orox R14

Out of stock
$13,295.00
Color
Colour
Size

Orox: Go Anywhere, Go Anytime, Bring It All!

  • Highly-durable and virtually maintenance-free Rohloff Speedhub
  • Silent, smooth, and rust & grease-free Gates Belt Drive
  • Custom 27.5" Schwalbe Johnny Watts all-terrain tires with optimised tread take on even the toughest conditions
  • Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support
  • Dual-battery system draws from up to two batteries for ultra-long range (1x 800Wh included)
  • Bosch Smart System with ConnectModule for advanced functions like eBike Alarm and eBike Tracking
  • Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
  • Powerful and responsive Magura 4-piston hydraulic brakes
  • Max Gross Vehicle Weight of 210 kg on pavement and 180 kg off-road
  • Frame size L to fit 165 - 195 cm rider height

What makes it an R14?

  • Highly-durable and virtually maintenance-free Rohloff Speedhub
  • Silent, smooth, and rust & grease-free Gates Belt Drive
  • Custom 27.5" Schwalbe Johnny Watts all-terrain tires with optimized tread take on even the toughest conditions

Orox highlights

  • Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support
  • Dual-battery system draws from up to two batteries for ultra-long range
  • Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking
  • Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
  • Powerful and responsive Magura 4-piston hydraulic brakes
  • EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road
  • Two frame sizes to fit riders 155 - 195 cm (5’1” - 6’5”) tall, weighing up to 130 kg (286 lb)



Specifications

SPEEDS: 1 x 14
WEIGHT: 37.7 kg (83.1 lb)
GEAR INCHES: 18" - 96" (1.45 - 7.64 m)
FRAME SIZES: M, L
DISTANCE: SEATPOST TO HANDLEBAR: M: 61 - 66 cm (24 - 26 in) ;  L: 67 - 73 cm (26.4 - 28.7 in)
DISTANCE: SADDLE TO PEDAL: M: 71 - 99 cm (28 - 39 in) ;  L: 76.5 - 104.5 cm (30.1 - 41.1 in)
SUGGESTED RIDER HEIGHT: M: 155 - 185 cm (61 - 72.8 in) ;  L: 165 - 195 cm (65 - 76.8 in)
MAX GROSS VEHICLE WEIGHT: On-road: 210 kg (463 lb) ;  Off-road: 180 kg (396.8 lb)
MAX RIDER WEIGHT: 130 kg (286.6 lb)
FRAME: Tern Orox, 6061-AL, patented design, EFBE tested and approved
FORK: Atlas X, butted chromoly steel, EFBE tested and approved
STEM: Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified
HEADSET: FSA, 1.5", angular contact bearings
HANDLEBAR: Level Nine, AL-7050, 800 mm, riser, eMTB approved
GRIPS/BAR TAPE: Ergon
SADDLE: Ergon SM, E-Mountain Sport, CrMo Rail
SEATPOST: Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved
SEATPOST CLAMP: Tern Collar
FRONT BRAKE: Magura MT5, 4-piston hydraulic disc, 203 mm rotor
REAR BRAKE: Magura MT5, 4-piston hydraulic disc, 203 mm rotor
BRAKE LEVERS: Magura MT5, hydraulic
BRAKE CABLE & HOUSING: Magura, hydraulic
FRONT WHEEL: Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
REAR WHEEL: Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
FRONT HUB: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx
REAR HUB: Rohloff, 526% range, Boost
SPOKES & NIPPLES: Stainless steel
RIMS: Tern Atlas X, custom doublewall construction
TIRES: Schwalbe Johnny Watts 27.5" x 4"
SHIFTER(S): Rohloff, Twist
CRANKSET: Tern Orox custom, Gates CDX CNC machined beltring
CASSETTE/FREEWHEEL: Gates CDX, precision CNC machined cog
BOTTOM BRACKET: Motor integrated
CHAIN: Gates Carbon Drive CDX belt
PEDALS: MTB, non-slip
SHIFTER CABLE & HOUSING: Rohloff
MOTOR: Bosch Performance CX, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY: 800 Wh, Bosch Dual Battery pack ready
DISPLAY: Bosch Kiox 300 w/ LED remote, electronic bike lock
RANGE: 800 Wh: 93 - 161 km (58 -100 mi); 1600 Wh: 185 - 322 km (115 - 200 mi)
CHARGER: 220V, 4A (EU); 100-240V, 4A (US)
CONNECT MODULE: Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
BELL: Pitch Plus, brass
TOOL: Thru-axle lever, 4/5 mm, Torx 2.5 mm
CHAINGUARD: Custom Bash Guard
PAINT PROTECTION: ToughShield film on top and downtube, self-healing
KICKSTAND: Atlas Kickstand XL Cargo ready
FRONT LIGHT: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
REAR LIGHT: LED w/ G-Sensed Brake Light
FENDERS: Aluminum, heavy duty construction, oversize stays, 27.5"
RACK(S): Atlas X, 100 kg (220 lb) capacity
