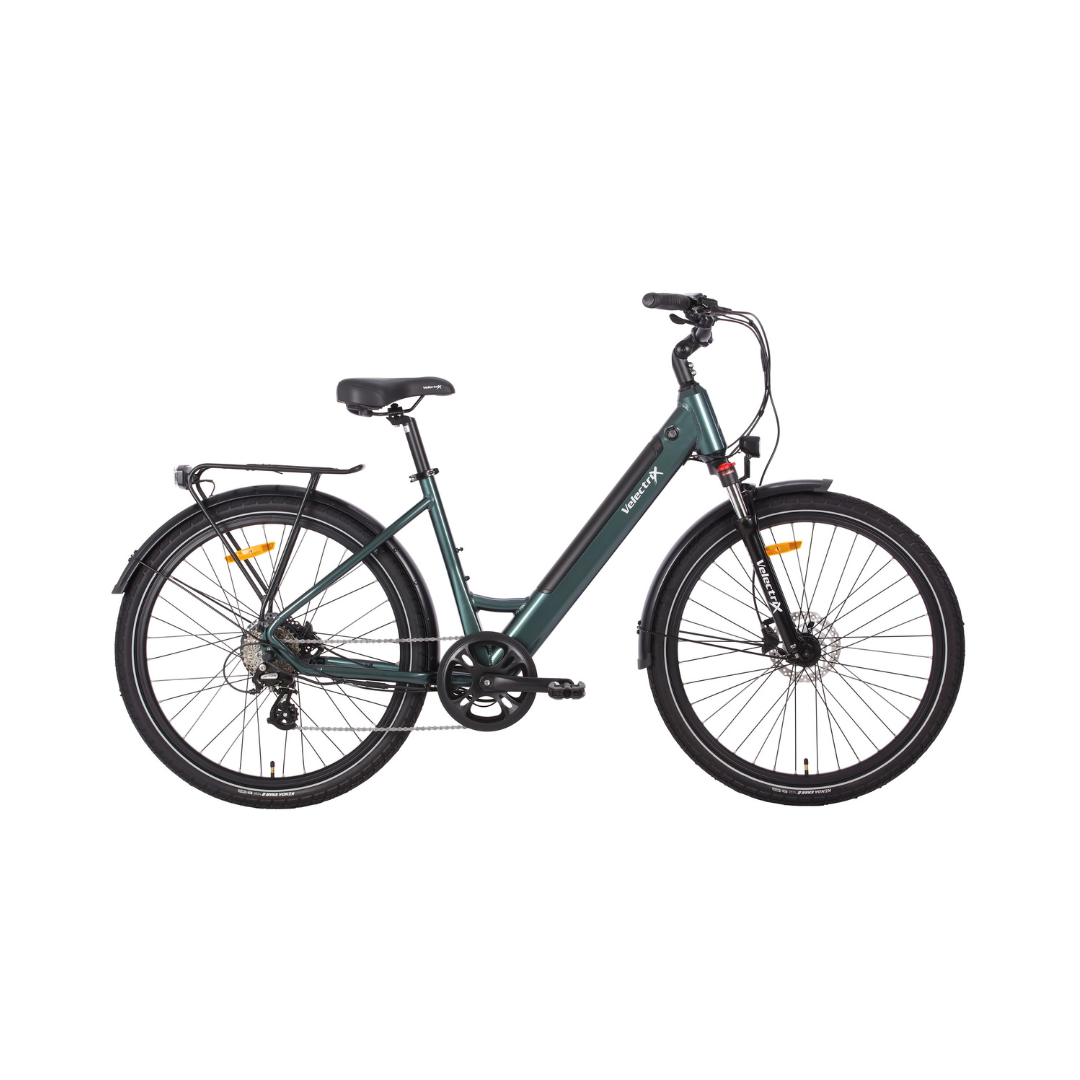

Velectrix Urban ST
Before using this vehicle check the applicable local laws relating to your intended use of the vehicle on roads & road related areas
NSW Fair Trading Ebike Certification: NSW29663
Regular price
$2,249.00
Sure to make others green with envy, the VelectriX Urban Step Through Electric Bike combines sleek green styling with a low step-through frame for easy mounting and maximum comfort. Featuring front suspension for a smooth, controlled ride over bumps and rough surfaces, puncture-resistant tyres for added durability, and mudguards to keep you clean, this electric bike is designed for effortless city travel. With adjustable handlebars, built-in lights, and a rear rack, it’s perfect for commuting, running errands, or shopping.
Specifications
| Frame | Aluminium low step through frame |
|---|---|
| Colour | Green |
| Sizes | Extra-small, Small, Medium |
| Fork | VelectriX suspension fork, 60mm travel with lockout |
| Brakes | Shimano MT200 hydraulic disc brakes, 160mm rotors |
| Gears | Shimano Altus 8 speed, 11-32T cassette |
| Wheels | Alloy double wall 27.5", 36 hole, 13 gauge with stainless steel black spokes |
| Tyres | Kenda Khan II, 27.5" x 2.1" with K-Shield puncture resistant casing and reflective strip |
| Handlebars | Alloy cruiser handlebar, 31.8mm clamp, 60mm rise, 35 degree back sweep, 680mm wide |
| Stem | Alloy 31.8mm clamp, 65mm extension |
| Seat Post | Alloy 300mm x 30.9mm |
| Motor | Bafang G120, 250 watt, 36 volt, rear hub motor |
| Power Output | 45 Nm torque |
| Max Speed | 25 kph |
| Drive Type | Cadence sensor |
| Drive Modes | 5 levels of assistance, slow to fast (10kph to 25kph) |
| Display | Kingmeter KM3209 - LCD display |
| Battery | Reention Mini Eel 417 watt hour (11.6Ah), 36 volt |
| Max Distance | Up to 50 kms per full charge |
| Charger | Smart charger, 3 amp, 36 volt |
| Charge Time | 5 hour maximum |
| Included | Kickstand, rear rack, mudguards, integrated front and rear lights |
| Bike Weight | 22.9 kgs including battery |
| Battery Weight | 2.5 kgs |
| Bike Carrying Capacity | 110 kgs rider weight + 25 kgs luggage on rear rack |
Size Guide
-
Extra-small
- Rider Height: 150cm to 165cm
-
Small
- Rider Height: 160cm to 175cm
-
Medium
- Rider Height: 175cm+
Measurements & Geometry
| Sizing | Extra-small | Small | Medium |
|---|---|---|---|
| ST - Seat Tube | 380mm | 420mm | 460mm |
| TT - Top Tube | 601mm | 605mm | 615mm |
| HT - Head Tube | 160mm | 180mm | 180mm |
| R - Reach | 395mm | 405mm | 415mm |
| S - Stack | 635mm | 655mm | 655mm |
| SO - Stand Over | 450mm | 465mm | 475mm |
| CS - Chain Stay | 460mm | 470mm | 470mm |
| HTA - Head Tube Angle | 70° | 70° | 70° |
| STA - Seat Tube Angle | 73° | 73° | 73° |
| FL - Fork Length | 445mm | 477mm | 477mm |
| WB - Wheelbase | 1123mm | 1137mm | 1147mm |
